Michael Herman
Hyperonomy Digital Identity Lab
Trusted Digital Web Project
Parallelspace Corporation
NOTE: This article supersedes an older version of this article:
1. Introduction
1.1 Goals
The goals of this article are three-fold:
- Introduce the concept of a Verifiable Capability Authorizations (VCA) and how they can be used to implement controls over which specific methods a particular party is allowed to execute against a particular instance of a Fully Decentralized Object (FDO). VCAs are both delegatable and attenuatable.
- Illustrate how #graphitization techniques can be used for modeling and visualizing:
- Trusted Decentralized Identifiers (DIDs)
- DID Documents
- Trusted Digital Agents (and their Service Endpoints (SEPs))
- Verifiable Credentials (VCs)
- Verifiable Capability Authorizations (VCAs) and,
- Most importantly, their myriad of interrelationships.
- Use the above 2 goals to further detail and describe how to use the VE-ARM model for implementing trusted, reliable, efficient, frictionless, standards-based, global-scale software systems based on Fully Decentralized Objects (FDOs).
1.2 Purpose

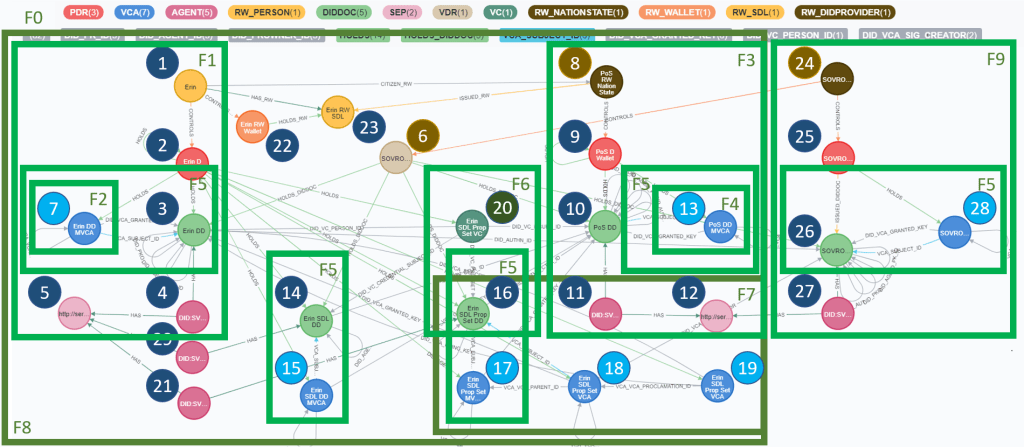

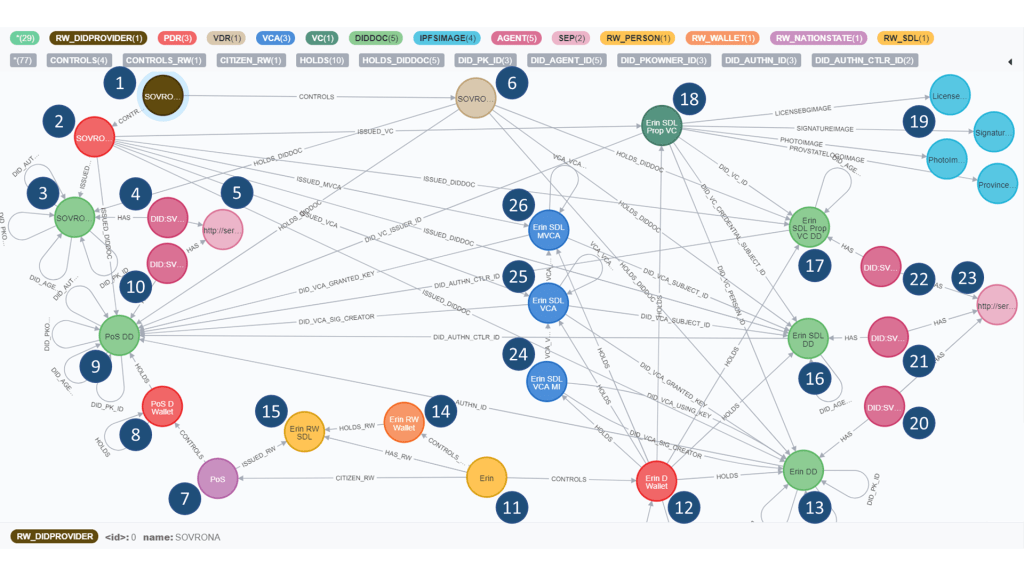

This article takes the following “All-in” graph view of The Verifiable Economy Architecture Reference Model (VE-ARM) and partitions it into a series of subgraphs that depict the key elements of the overall architecture reference model for FDOs. Each subgraph is documented with a narrative that is mapped to the numbered blue targets used to identify each element in each subgraph.
The above graphitization is the result of a several iterations validating The Verifiable Economy Architecture Reference Model (VE-ARM) against the following live scenario:
Erin acquiring a personal DID and DID Document to enable Erin to acquire a Province of Sovronia Driver’s License (SDL) (represented as an FDO) and hold the SDL in Erin’s digital wallet.

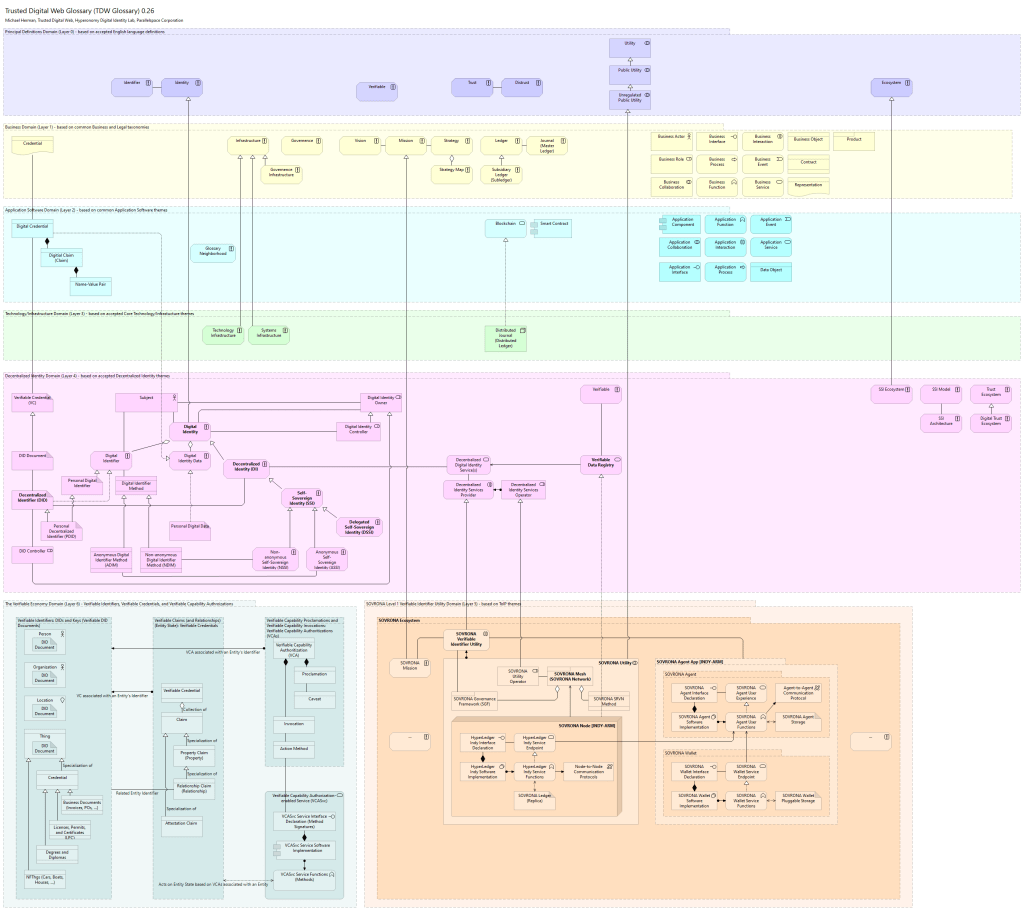

TDW Glossary: Self-Sovereign Identity (SSI) User Scenarios: Erin Buys a Car in Sovronia (3 User Scenarios)
A Fully Decentralized Object (FDO) is comprised of the following minimal elements:
- DID (and correspond DID Document)
- Master Verifiable Capability Authorization (MVCA) for the object’s DID and DID Document
- Zero or more Verifiable Capability Authorizations (VCAs) linked to the above MVCA for the object (recursively)
- A Property Set for the FDO
- Property Set DID (and corresponding DID Document)
- Property Set MVCA that is issued when the Property Set’s DID and DID Document is issued.
- Property Set Verifiable Credential (VC) is issued to hold the object’s properties and their values
- Zero or more Verifiable Capability Authorizations (VCAs) linked to the FDO’s Property Set MVCA (recursively)
- A Trusted Digital Agent registered with a Service Endpoint (SEP) in the object’s DID Document that implements the VCA-controlled methods for accessing and interacting with the object and/or it’s property set. Control over which methods are invokable by a party is controlled by the respective MVCAs and a Delegated Directed Graphs of VCAs (if there are any).
The goal and purpose of the VE-ARM is to describe a Fully-Decentralized Object (FDO) model that unites the following concepts into a single integrated, operational model:
- Verifiable Identifiers, Decentralized Identifiers (DIDs), and DID Documents;
- Verifiable Claims, Relationships, and Verifiable Credentials (VCs);
- Master Verifiable Capability Authorizations (MVCA) (Master Proclamations), Verifiable Capability Authorizations (VCAs) (Proclamations), Verifiable Capability Authorization Method Invocations (MIs); and
- Trusted Digital Agents (TDAs).
1.3 Background
The scenario used to model the VE-ARM is an example of a citizen (Erin) of a fictional Canadian province called Sovronia holding a valid physical Sovronia Driver’s License (Erin RW SDL) as well as a digital, verifiable Sovronia Driver’s License (Erin SDL).
1.4 Graphitization of the Verifiable Economy Architecture Reference Model (VE-ARM)
The underlying model was built automatically using a series of Neo4j Cypher queries running against a collection of actual DID Document, Verifiable Credential, and Verifiable Capability Authorization JSON files. The visualization was laid out using the Neo4j Browser. The resulting layout was manually optimized to produce the final version of the graphitization used in this article. The numbered targets used to identify each element in each subgraph were added using Microsoft PowerPoint.
2. Organization of this Article
Following a list of Key Definitions, the remainder of this article is organized as a series of increasingly more detailed explanations of the VE-ARM model. The overall model is partitioned into a collection of (overlapping) subgraphs.
Each subgraph is described by a narrative that explains the purpose of each element in the particular subgraph. Each narrative is organized as a list of numbered bullets that further describe to the corresponding numbered blue targets used to identify each element in each subgraph .
A narrative is a story. It recounts a series of events that have taken place. … These essays are telling a story in order to drive a point home. Narration, however, is the act of telling a story.
Examples of Narration: 3 Main Types in Literature
2.1 Table of Subgraphs
- Subgraph F1 – Erin’s DID Document (DD) Neighborhood
- Subgraph F2 – Erin’s DD Master Verifiable Capability Authorization (MVCA) Neighborhood
- Subgraph F3 – Province of Sovronia DID Document (DD) Neighborhood
- Subgraph F4 – Province of Sovronia DD Master Verifiable Capability Authorization (MVCA) Neighborhood
- Subgraph F5 – DID Documents (DDs) and Master Verifiable Capability Authorizations (MVCAs) Neighborhood
- Subgraph F6 – Erin’s Sovronia Drivers License (SDL) Property Set Verifiable Credential (VC) Neighborhood
- Subgraph F7 – Erin’s SDL Property Set Delegated Directed Graph of Verifiable Capability Authorizations Neighborhood
- Subgraph F8 – Erin “Real World” Neighborhood

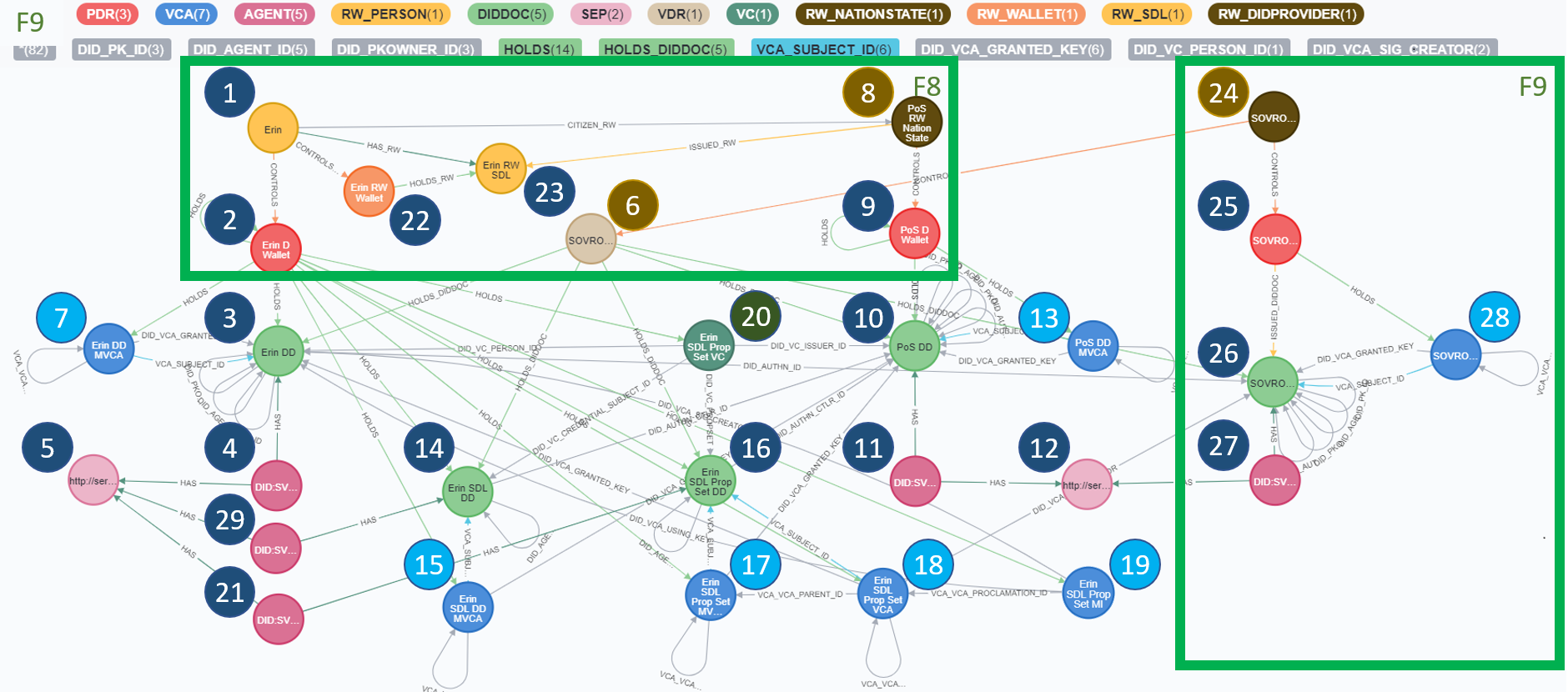

- Subgraph F9 – SOVRONA Trusted Decentralized Identity Provider (TDIDP) Neighborhood

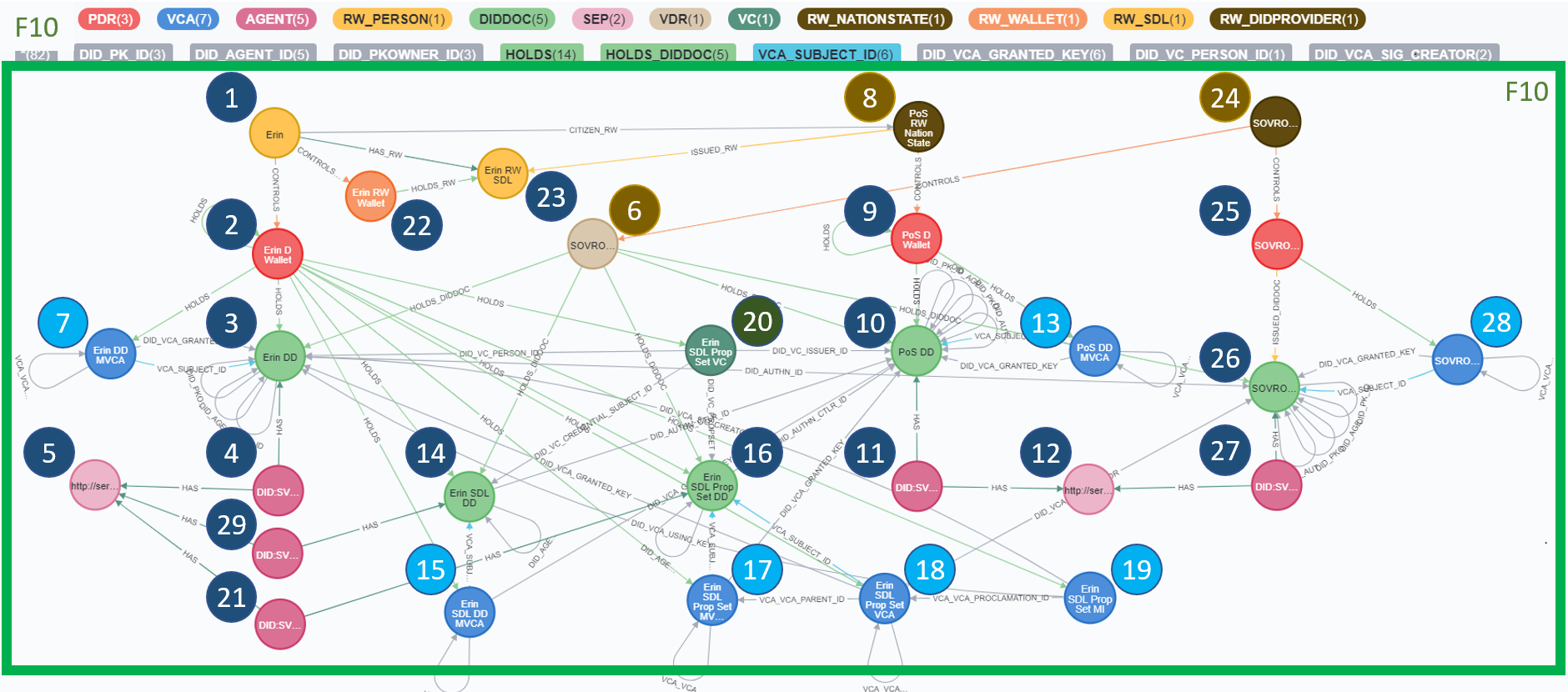

- Subgraph F10 – The Verifiable Economy “All-In” Graph View

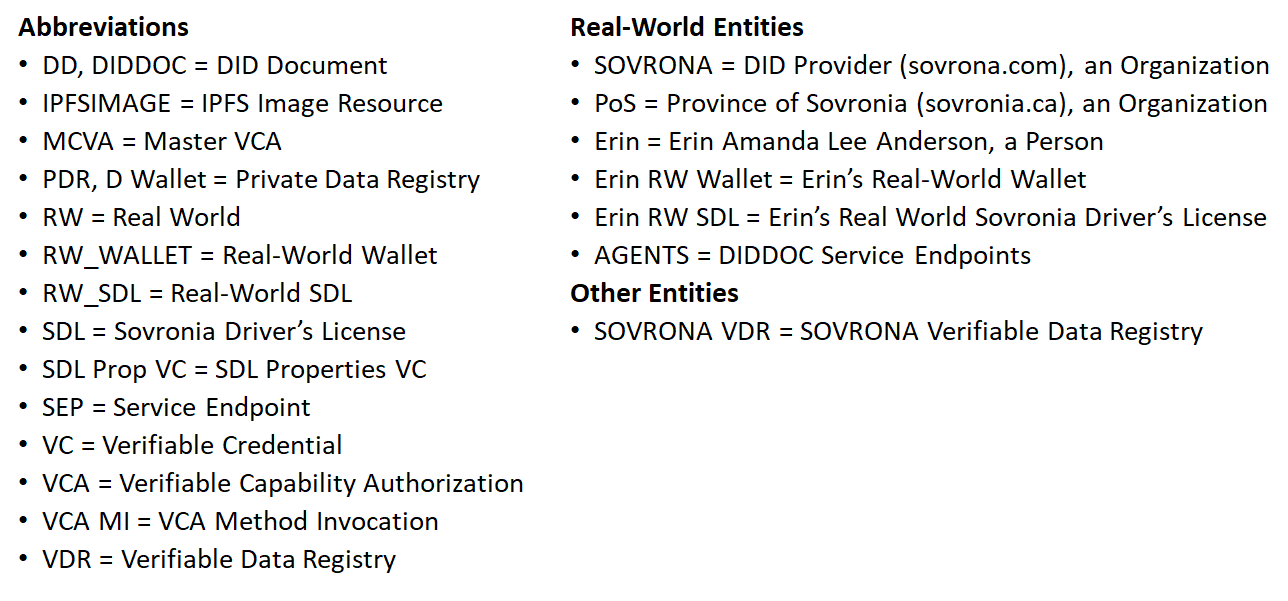

3. Key Definitions
Several of the following definitions (those related to the concept oferifiable capability authorizations) are inspired by the following RWoT5 article:
- Linked Data Capabilities by Christopher Lemmer Webber and Mark S. Miller
Additional context can be found in Authorization Capabilities for Linked Data v0.3.
3.1 VE-ARM Verifiable Capability Authorization (VCA) Model
The VE-ARM Verifiable Capability Authorization (VCA) model used to grant the authority to specific parties to invoke specific methods against an instance of a Fully Decentralized Object (FDO). The VE-ARM VCA model is based, in part, on the Object-Capability Model. The VE-ARM VCA model supports Delegation and Attenuation.
3.2 Object Capability Model
The object-capability model is a computer security model. A capability describes a transferable right to perform one (or more) operations on a given object. It can be obtained by the following combination:
– An unforgeable reference (in the sense of object references or protected pointers) that can be sent in messages.
Object-Capability Model (https://en.wikipedia.org/wiki/Object-capability_model)
– A message that specifies the operation to be performed.
3.3 VCA Model Principles Delegation and Attenuation
With delegation, a capability holder can transfer his capability to another entity, whereas with attenuation he can confine a capability before delegating it.
Capability-based access control for multi-tenant systems using OAuth 2.0 and Verifiable Credentials
3.4 Fully Decentralized Object (FDO)
In The Verifiable Economy, a Fully Decentralized Object (FDO) is comprised of the following minimal elements:
- DID (and correspond DID Document)
- Master Verifiable Capability Authorization (MVCA) for the object’s DID and DID Document
- Zero or more Verifiable Capability Authorizations (VCAs) linked to the above MVCA for the object (recursively)
- A Property Set for the FDO
- Property Set DID (and corresponding DID Document)
- Property Set MVCA that is issued when the Property Set’s DID and DID Document is issued.
- Property Set Verifiable Credential (VC) is issued to hold the object’s properties and their values
- Zero or more Verifiable Capability Authorizations (VCAs) linked to the FDO’s Property Set MVCA (recursively)
- An Trusted Digital Agent registered with a Service Endpoint (SEP) in the object’s DID Document that implements the VCA-controlled methods for accessing and interacting with the object and/or it’s property set. Control over which methods are invokable by a party is controlled by the respective MVCAs and a Delegated Directed Graphs of VCAs (if there are any).
3.5 Fully Decentralized Object (FDO) Model
A complete decentralized object system based on the concept of FDOs.
3.6 Verifiable Capability Authorization (VCA)
A Verifiable Capability Authorization (VCA) is a JSON-LD structure that grants (or restricts) a specific party (the controller of a key (grantedKey)) the ability to invoke specific methods against a specific instance of a Fully Decentralized Object (FDO). A VCA typically has a type of Proclamation (unless it is a Method Invocation VCA).
A VCA has the following properties:
- id – trusted, verifiable decentralized identifier for the VCA
- type – “Proclamation”
- parent – trusted, verifiable decentralized identifier for a parent VCA whose control supersedes this current VCA.
- subject – trusted, verifiable decentralized identifier of the specific instance of the FDO.
- grantedKey – trusted, verifiable key of the party to whom the specified capabilities are being granted specifically with respect to the specific instance of the FDO.
- caveat – the collection of specific capabilities the party represented by grantedKey is granted (or restricted) from invoking against a specific instance of the FDO identified by the subject identifier.
- signature – trusted, verifiable proof that this VCA is legitimate.
NOTE: The current VCA’s capabilities must be equal to or an attenuation of the parent VCA’s capabilities. This part of the VCA model is recursive.
NOTE: An FDO can be an object or a service represented as an object.

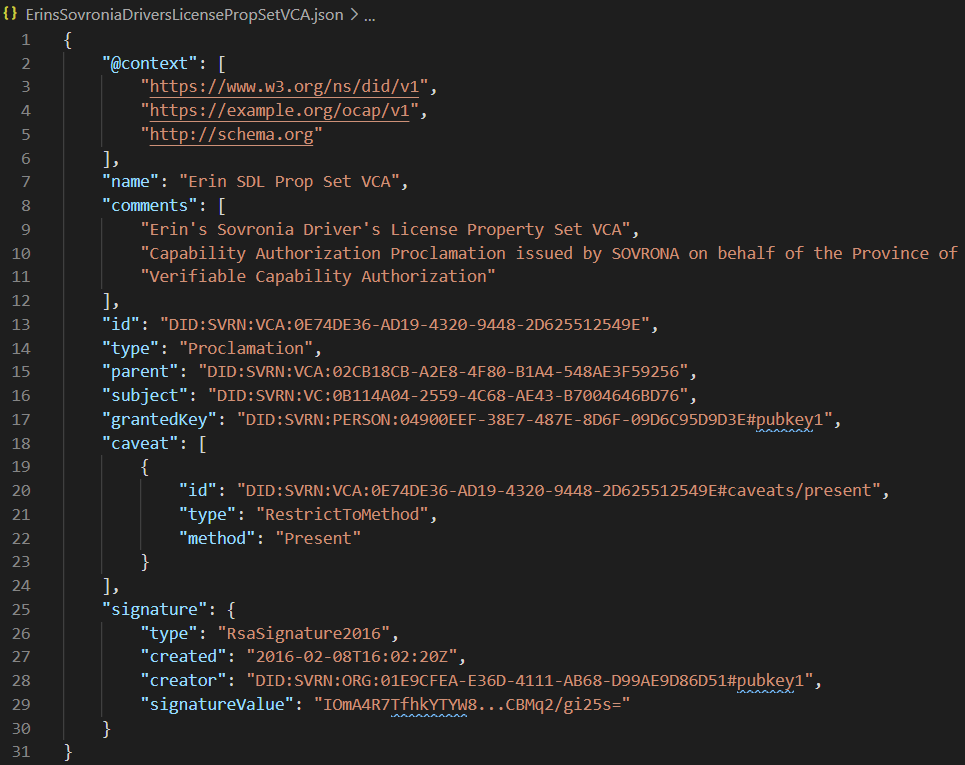

The following is an example of a VCA associated with Erin and Erin’s Sovronia Driver’s License Property Set.
3.7 Master Verifiable Capability Authorization (MVCA)
A Master Verifiable Capability Authorization (MVCA) is a Proclamation-type VCA that is created for every FDO at the time that the DID and DID Document for the FDO is issued by a Trusted Decentralized Identity Provider (TDIDP) (e.g. SOVRONIA).
That is, a new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA typically grants authorization for any and all methods to the controller of the DID. (This is the essence of the definition of self-sovereign identity principle.)
An MVCA has the following properties:
- id – trusted, verifiable decentralized identifier for the VCA
- type – “Proclamation” (or “Invocation”)
- subject – trusted, verifiable decentralized identifier of the specific instance of the FDO. An FDO can be an object or a service represented as an object.
- grantedKey – trusted, verifiable key of the party to whom the specified capabilities are being granted specifically with respect to the specific instance of the FDO.
- caveat – the collection of specific capabilities the party represented by grantedKey is granted (or restricted) from invoking against a specific instance of the FDO identified by the subject identifier. Typically, this is set to RestrictToMethod( * ) granting the controller of the grantedKey to execute any and all methods against the subject. (This is where and how the essence of the definition of the self-sovereign identity principle is realized.)
- signature – trusted, verifiable proof that this VCA is legitimate.
NOTE: A MVCA has no parent property because an MVCA always represents the top-level root VCA in a Delegated Directed Graphs of Verifiable Capability Authorizations (see below).

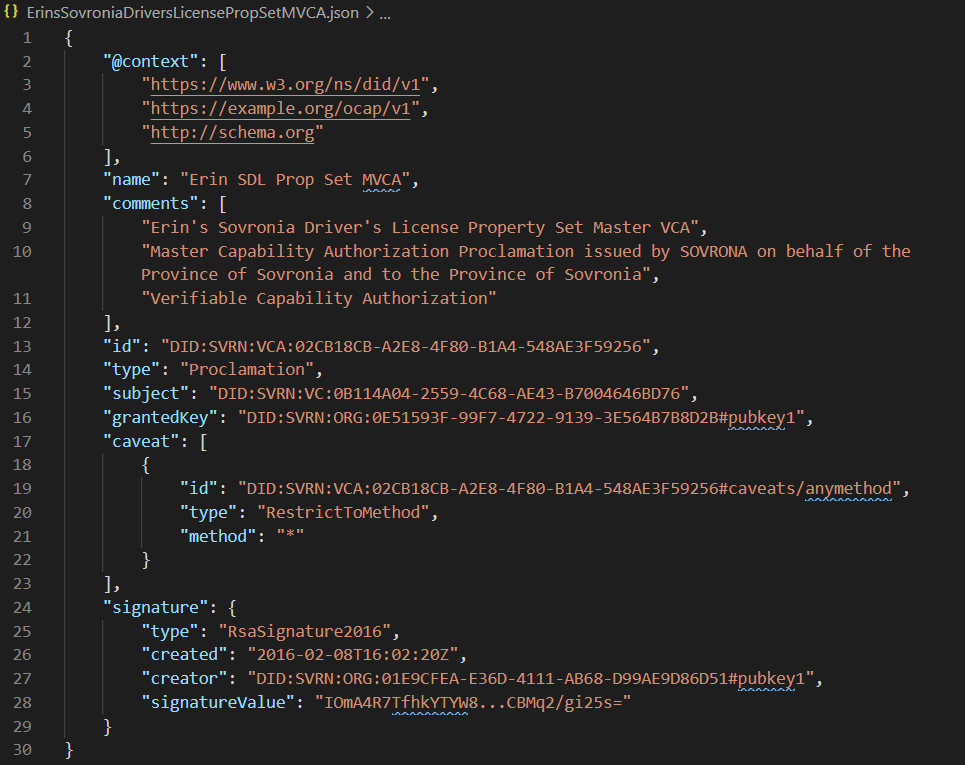

The following is an example of a MVCA for Erin’s Sovronia Drivers License Property Set. This MVCA is the parent of the above VCA.
3.8 VCA Method Invocation (MI)
A VCA Method Invocation (MI) is a JSON-LD structure that attempts to invoke a specific method against a specific instance of a Fully Decentralized Object (FDO) on behalf of a specific invoking party. An MI is of type Invocation (not Proclamation).
An MI has the following properties:
- id – trusted, verifiable decentralized identifier for the MI
- type – “Invocation”
- proclamation – trusted, verifiable decentralized identifier for the VCA to be used for this MI against the specific instance of an FDO by a specific party (Proclamation VCA).
- method – specific name of the method to be invoked against the specific instance of an FDO by a specific party.
- usingKey – trusted, verifiable key of the party to be used to attempt the invocation of the above method against a specific instance of the FDO.
- signature – trusted, verifiable proof that this VCA is legitimate.
NOTE: An MI doesn’t have a subject property. The target object is specified by the subject property of the proclamation VCA.
A very important point you make is, “NOTE: An MI doesn’t have a subject property. The target object is specified by the subject property of the proclamation VCA.” That point is so important, not separating designation from authorization, that I’d like to see it in bold.
Alan Karp alanhkarp@gmail.com, May 17, 2021 CCG Mailing List

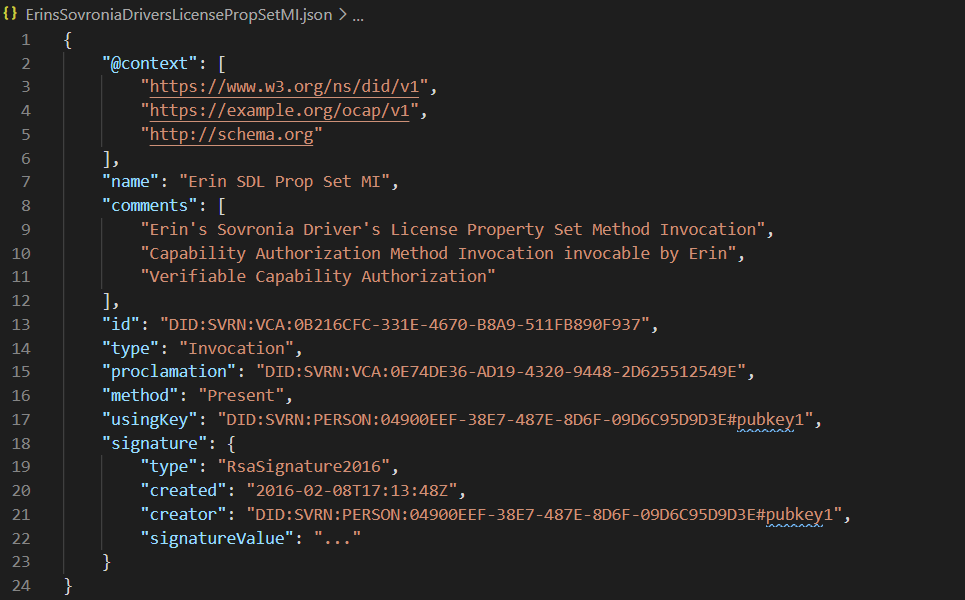

The following is an example of a MI that attempts to invoke the Present method on behalf of Erin against Erin’s Sovronia Drivers License Property Set. The referenced VCA is the VCA example from above.

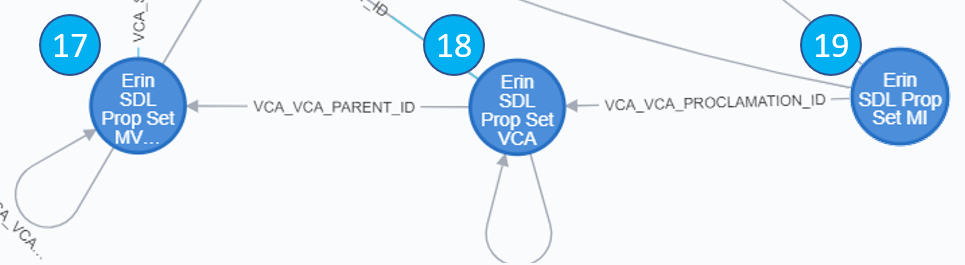

3.9 Delegated Directed Graph of Verifiable Capability Authorizations
A Delegated Directed Graph of Verifiable Capability Authorizations is a directed list of VCAs that starts with an MVCA as it’s top-level, root VCA. Each VCA in the graph points to the previous VCA in the graph via its parent property. An MI, in turn, refers to a single VCA in the graph via the MI’s proclamation property. The capabilities in effect are those that are specifically listed in the target VCA’s caveat property. While there is no inheritance of capabilities in this model, the capabilities specified by each VCA must be equal or less than (a subset of) the capabilities of the parent VCA (see the definition of Principles of Delegation and Attenuation).
The above examples of an MVCA, a VCA, and an MI, taken together, form an example of a Delegated Directed Graph of Verifiable Capability Authorizations.
3.8.1 Narrative
17. Erin SDL Prop Set MVCA. Erin SDL Prop Set MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL Prop Set (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
18. Erin SDL VCA. Erin SDL VCA is the Verifiable Capability Authorization (VCA) created for Erin’s SDL Prop Set DD. The VCA was issued by the Province of Sovronia authorizing Erin to be able to present the properties (and their values) of Erin’s SDL to a third party using the Present method associated with Erin’s SDL Prop Set and supported (implemented) by Erin’s AGENT. The parent of Erin’s SDL VCA is the Erin SDL MVCA.
19. Erin SDL VCA MI. Erin SDL VCA MI is an example of a MVCA Method Invocation (VCA MI) that uses the Erin SCL VCA which authorizes the potential execution of the Present method by Erin against Erin’s SDL Prop Set.
3.10 Resource Servers and Authentication Servers
A resource server that hosts a protected resource owned by a resource owner, a client wishing to access that resource, and an authorization server responsible for generating access tokens. Access tokens are granted to clients authorized by the resource owner: client authorization is proven using an authorization grant. In our system we are using the ‘client credentials’ grant. As it can be seen from Fig. 1, when this type of grant is used, a resource owner configures the authentication server with the credentials of the authorized clients; a client authenticates to the authorization server and receives an access token, then it uses the access token to access the protected resource.
Capability-based access control for multi-tenant systems using OAuth 2.0 and Verifiable Credentials
Although these terms are not currently used in the VE-ARM, the resource server role is assigned to the FDO AGENT specified in the subject’s DID document. The authorization server role is assigned to the actor who is responsible for creating Verifiable Capability Authorizations (VCAs). In the current example, SOVORONIA hosts the authorization server on behalf of either the Province of Sovronia or Erin.
4. VE-ARM Principles
The following principles are used to guide The Verifiable Economy Architecture Reference Model (VE-ARM):
- DD MVCA Principle. Every DID (and DID Document) has a corresponding Master Verifiable Capability Authorization (MCVA). Whenever a DID and corresponding DID Document is issued, a corresponding Master Verifiable Capability Authorization (MCVA) is automatically created. See F2 in Figure 1. Snippet 4 is an example of a DID Document Master Verifiable Capability Authorization (DD MVCA).
- Property Set VC Principle. All of the properties (and their values), a Property Set, for a particular decentralized object are stored in a Verifiable Credential (VC) that has an id value that is equal to the DID id of the decentralized object. See F6 in Figure 6. Snippet 5 is a partial example of a Property Set Verifiable Credential (PS VC).
NOTE: Additional architecture and design principles need to be added to this section.
5. Erin’s DID Document (DD) and Master Verifiable Capability Authorization (MVCA) Neighborhoods
Erin Amanda Lee Anderson is a Person, a Citizen of Sovronia, and a Sovronia Driver’s License holder. The following is a graphitization of Erin’s DID and DID Document and the corresponding Master Verifiable Capability Authorization (MVCA).
5.1 Erin’s DID Document Narrative (F1)
1. Erin. Erin is a RW_PERSON (“Real World” Person) and a citizen of the Province of Sovronia. Erin also holds a (valid) Sovronia Driver’s License (SDL) and controls a “Real World” Wallet (RW_WALLET) as well as a Digital Wallet (PDR).
2. Erin D Wallet. Erin D Wallet is a Digital Wallet (PDR (Private Data Registry)) controlled by Erin, a Person.
3. Erin DD. Erin DD is the primary DIDDOC (DID Document) for Erin, a Person. It is issued by SOVRONA who records it on the SOVRONA VDR and it is also held in the Erin DD Wallet.
4. DID:SVRN:PERSON:04900EEF-38E7-487E-8D6F-09D6C95D9D3E#fdom1. DID:SVRN:PERSON:04900EEF-38E7-487E-8D6F-09D6C95D9D3E#fdom1 is the identifier for the primary AGENT for Erin, a Person.
5. http://services.sovronia.ca/agent. http://services.sovronia.ca/agent is the primary SEP (Service Endpoint) for accessing the AGENT(s) associated with the DID(s) and DID Document(s) issued by the Province of Sovronia, an Organization. This includes all of the DID(s) and DID Document(s) associated with Erin.
6. SOVRONA VDR. SOVRONA VDR is the primary VDR (Verifiable Data Registry) controlled by SOVRONA, an Organization. The SOVRONA VDR is used to host the SVRN DID Method.

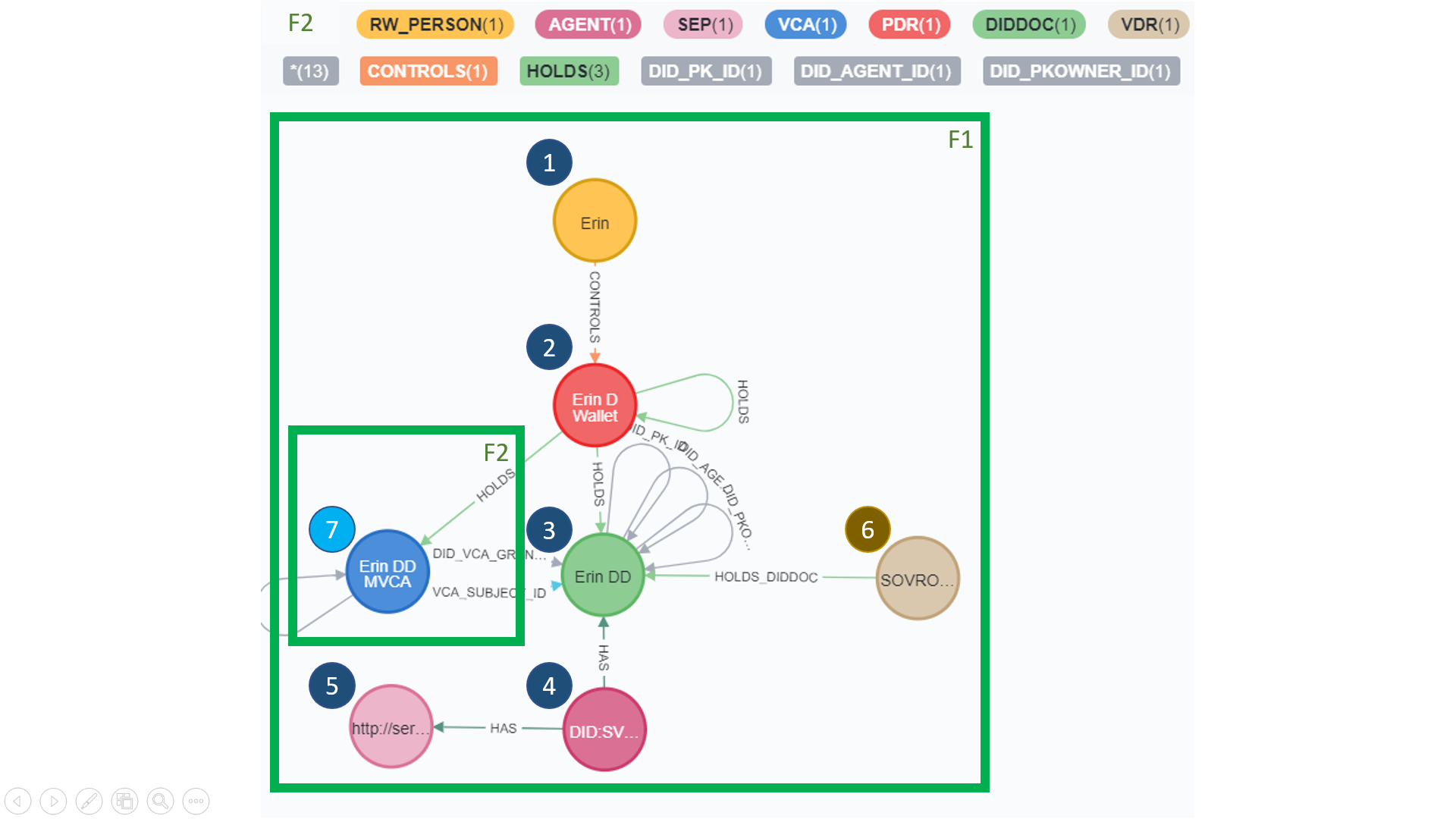

5.2 Erin’s DD Master Capability Authorization Narrative (F2)
7. Erin DD MVCA. Erin DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s DID Document at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to Erin.)

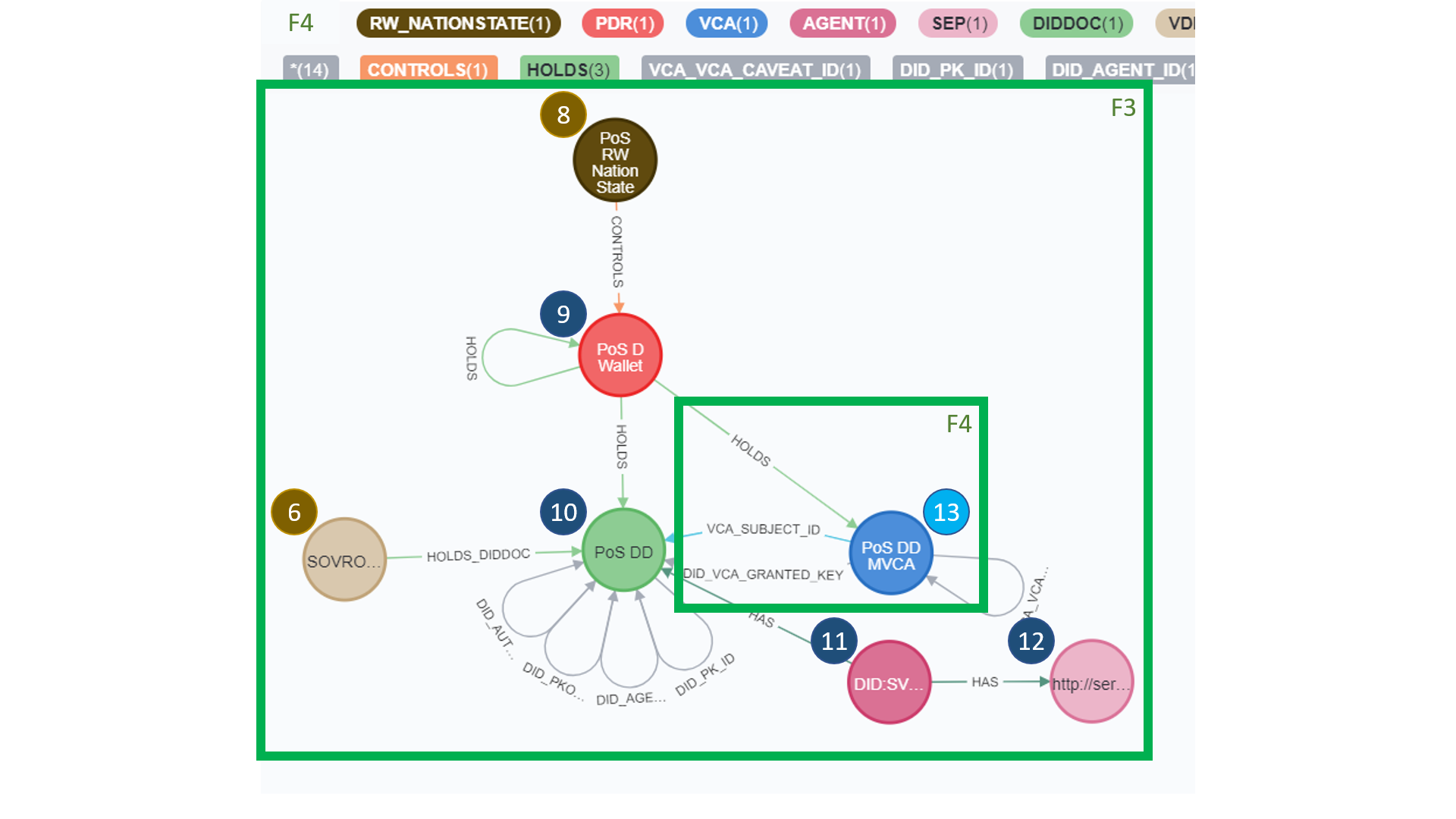

6. Province of Sovronia DID Document (DD) and DD Master Verifiable Capability Authorization (MVCA) Neighborhood
Province of Sovronia is an Organization and a “Real World” Nation State (sovronia.ca). The following is a graphitization of the Province of Sovronia’s DID and DID Document and its corresponding Master Verifiable Capability Authorization (MVCA).
6.1 Province of Sovronia DID Document (DD) Narrative (F3)
6. SOVRONA VDR. SOVRONA VDR is the primary VDR (Verifiable Data Registry) controlled by SOVRONA, an Organization. The SOVRONA VDR is used to host the SVRN DID Method.
8. PoS RW Nation State. The Province of Sovronia is a (fictitious) Province (RW_NATIONSTATE (“Real World” Nation State)) in Canada and the legal government jurisdiction for the citizens of the province. The Province of Sovronia is an Organization. The Province of Sovronia issues “Real World” Sovronia Driver’s Licenses (SDLs) but relies on SOVRONA to issue digital, verifiable SDLs.
9. PoS D Wallet. PoS D Wallet is a Digital Wallet (PDR (Private Data Registry)) controlled by the Province of Sovronia, an Organization.
10. PoS DD. PoS DD is the primary DIDDOC (DID Document) for the Province of Sovronia, an Organization. It is issued by SOVRONA who records it on the SOVRONA VDR and it is held in the PoS D Wallet.
11. DID:SVRN:ORG:0E51593F-99F7-4722-9139-3E564B7B8D2B#fdom1. DID:SVRN:ORG:0E51593F-99F7-4722-9139-3E564B7B8D2B#fdom1 is the identifier for the primary AGENT for the Province of Sovronia, an Organization.
12. http://services.sovrona.com/agent. http://services.sovrona.com/agent is the primary SEP (Service Endpoint) for accessing the AGENT(s) associated with the DID(s) and DID Document(s) issued by SOVRONA, an Organization.
6.2 Province of Sovronia DD Master Capability Authorization Neighborhood (F4)
13. PoS DD MVCA. PoS DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for the Province of Sovronia’s DID Document (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of itself for the Province of Sovronia. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to the Province of Sovronia.)

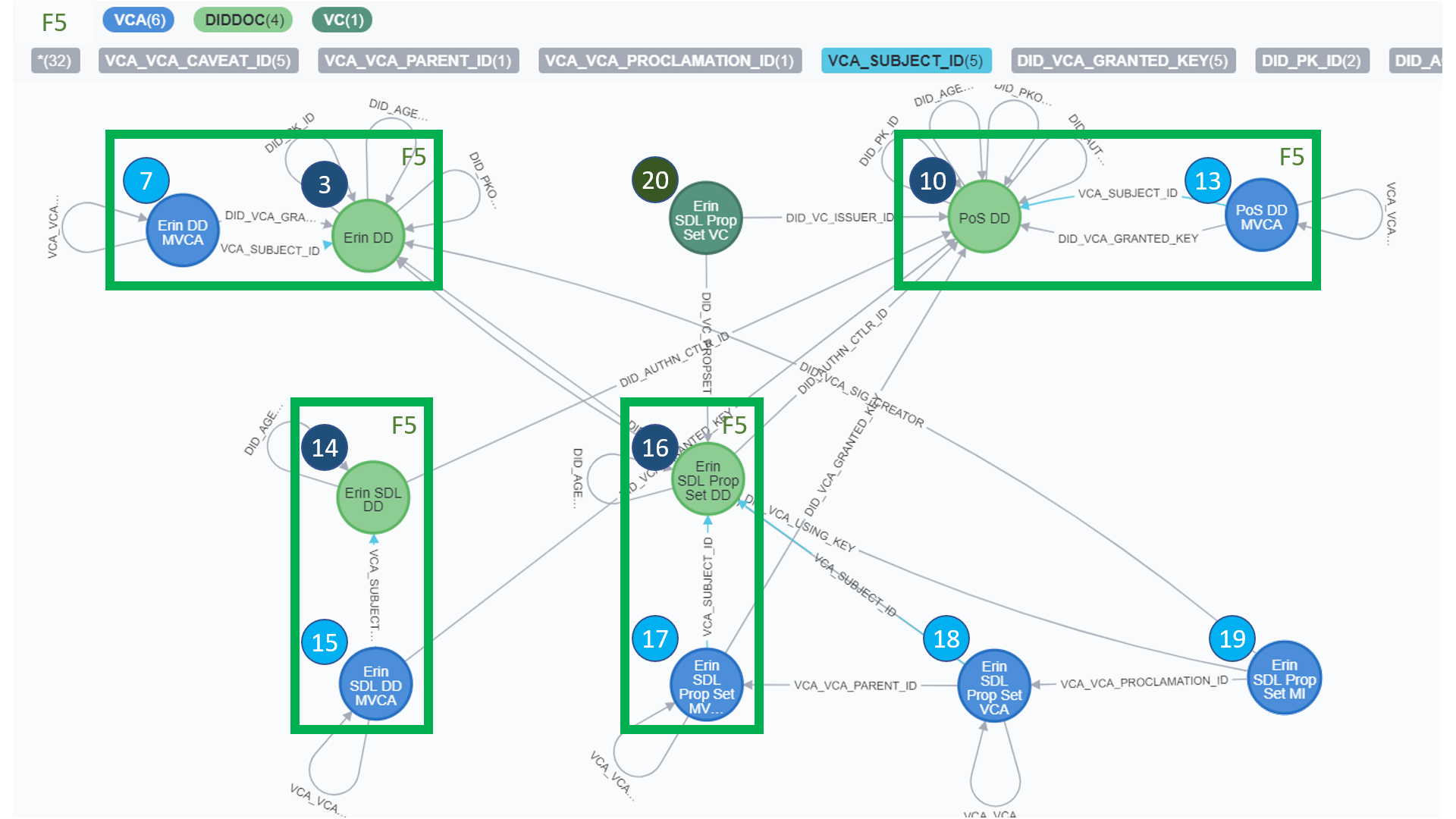

7. DID Document (DD) and Master Verifiable Capability Authorization (MVCA) Neighborhoods
A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. This subgraph highlights that with every new DID and DID Document, a corresponding MVCA is issued at the same time. The graphitization includes all of the DIDs in the Subgraph 0 scenario (plus their corresponding MVCAs).
7.1 DID Documents (DDs) and Master Verifiable Capability Authorizations (MVCAs) Narratives (F5)
3. Erin DD. Erin DD is the primary DIDDOC (DID Document) for Erin, a Person. It is issued by SOVRONA who records it on the SOVRONA VDR and it is also held in the Erin DD Wallet.
7. Erin DD MVCA. Erin DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s DID Document at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to Erin.)
10. PoS DD. PoS DD is the primary DIDDOC (DID Document) for the Province of Sovronia, an Organization. It is issued by SOVRONA who records it on the SOVRONA VDR and it is held in the PoS D Wallet.
13. PoS DD MVCA. PoS DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for the Province of Sovronia’s DID Document (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of itself for the Province of Sovronia. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to the Province of Sovronia.)
14. Erin SDL DD. Erin SDL DD is the primary DIDDOC (DID Document) for Erin’s digital, verifiable SDL.
15. Erin SDL MVCA. Erin SDL MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
16. Erin SDL Prop Set DD. Erin SDL Prop Set DD is the primary DIDDOC (DID Document) for the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.
17. Erin SDL Prop Set MVCA. Erin SDL Prop Set MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL Prop Set (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
8. Erin’s Sovronia Drivers License Property Set DID Document (DD) and Master Verifiable Capability Authorization (MVCA) Neighborhood

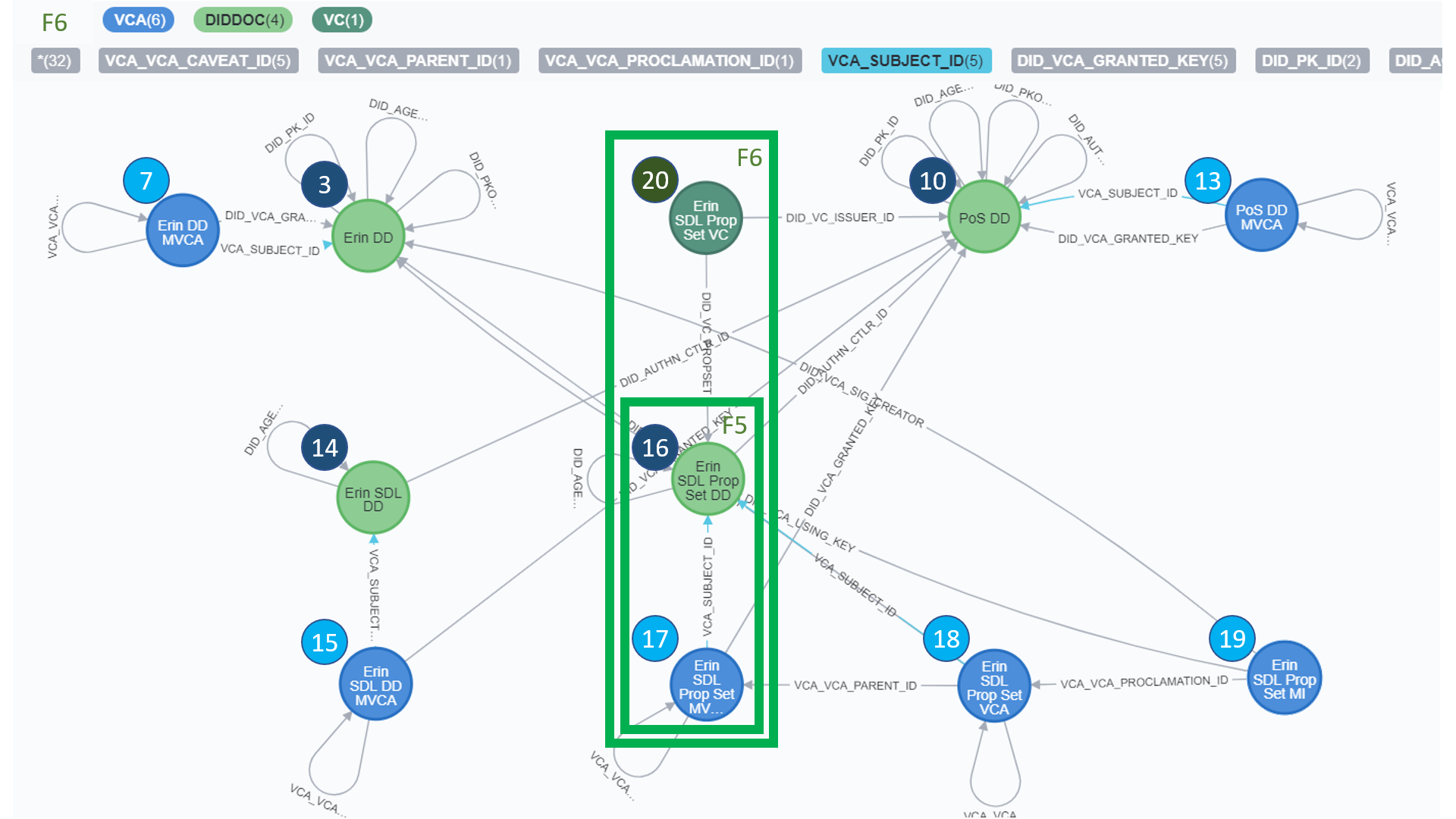

Subgraph F6 illustrates how a Property Set for an FDO is realized by a Verifiable Credential (VC). The following is a graphitization of Erin’s Sovronia Driver’s License Property Set.
NOTE: All the properties of an FDO (an FDO Property Set) are represented by one or more Verifiable Credentials associated with the FDO’s DID. A Property Set is associated with an FDO by creating a Verifiable Credential that holds the properties (and their values) that is linked to the FDO’s DID.
VE-ARM Principles
8.1 Erin’s Sovronia Drivers License Property Set Verifiable Credential (VC) Narrative (F6)
16. Erin SDL Prop Set DD. Erin SDL Prop Set DD is the primary DIDDOC (DID Document) for the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.
17. Erin SDL Prop Set MVCA. Erin SDL Prop Set MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL Prop Set (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)

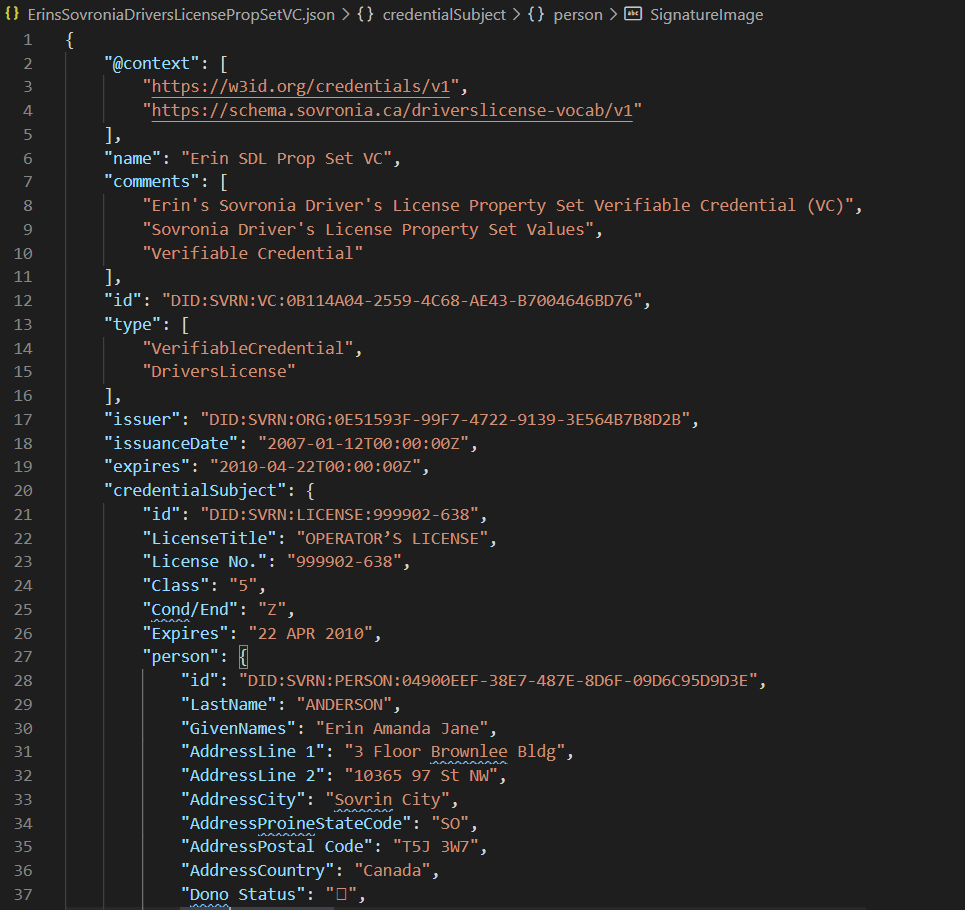

20. Erin SDL Prop Set VC. Erin SDL Prop Set VC is the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set VC, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.

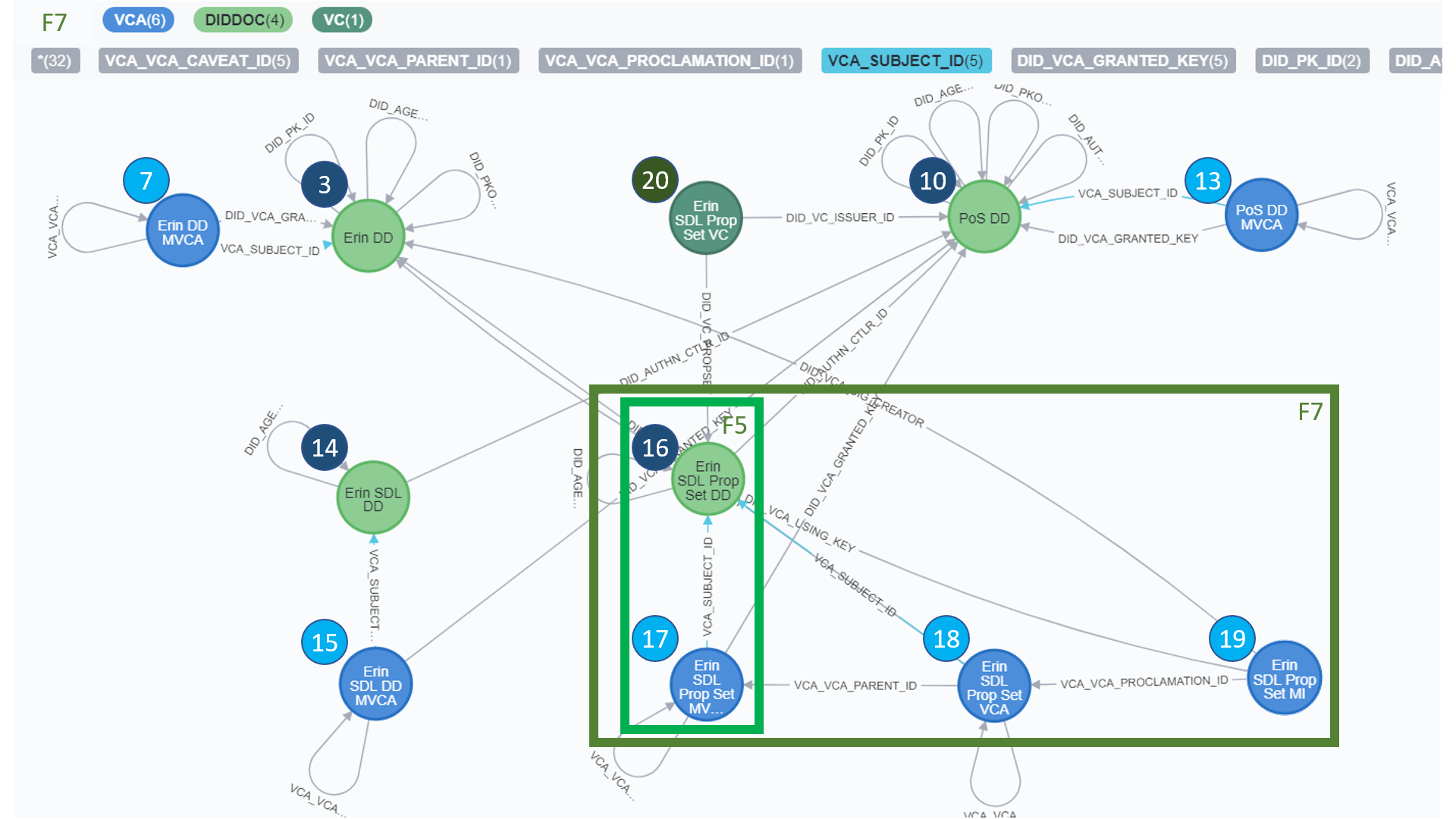

9. Erin’s Sovronia Drivers License Property Set Delegated Directed Graph of Verifiable Capability Authorizations Neighborhood
This subgraph illustrates what a Delegated Directed Graph of Verifiable Capability Authorizations looks like. The graphitization of the Delegated Directed Graph of VCAs applies to Erin’s Sovronia Drivers License Property Set.
The Delegated Directed Graph of VCAs, in this scenario, consists of:
- Erin’s Sovronia Drivers License Property Set MVCA
- One VCA linked back to the MVCA
- One VCA Method Innovation (MI) linked back the VCA
9.1 Erin’s SDL Property Set Delegated Directed Graph of Verifiable Capability Authorizations Narrative (F7)
16. Erin SDL Prop Set DD. Erin SDL Prop Set DD is the primary DIDDOC (DID Document) for the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.
17. Erin SDL Prop Set MVCA. Erin SDL Prop Set MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL Prop Set (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
18. Erin SDL VCA. Erin SDL VCA is the Verifiable Capability Authorization (VCA) created for Erin’s SDL Prop Set DD. The VCA was issued by the Province of Sovronia authorizing Erin to be able to present the properties (and their values) of Erin’s SDL to a third party using the Present method associated with Erin’s SDL Prop Set and supported (implemented) by Erin’s AGENT. The parent of Erin’s SDL VCA is the Erin SDL MVCA.
19. Erin SDL VCA MI. Erin SDL VCA MI is an example of a MVCA Method Invocation (VCA MI) that uses the Erin SCL VCA which authorizes the potential execution of the Present method by Erin against Erin’s SDL Prop Set.
10. SOVRONA Trusted Decentralized Identity Provider (TDIDP) DID Document (DD), DD Master Verifiable Capability Authorization (MVCA) and Erin “Real World” Neighborhoods
Subgraph F8 is a visualization of:
- Erin’s “Real World” objects
- Erin’s “Real World” Wallet (Erin RW (Leather) Wallet)
- Erin’s “Real World” Sovronia Drivers License (Erin RW SDL)
- SVORONIA’s DID and DID Document (and corresponding MVCA)
10.1 Erin’s “Real World” Narrative (F9)
1. Erin. Erin is a RW_PERSON (“Real World” Person) and a citizen of the Province of Sovronia. Erin also holds a (valid) Sovronia Driver’s License (SDL) and controls a “Real World” Wallet (RW_WALLET) as well as a Digital Wallet (PDR).
8. PoS RW Nation State. The Province of Sovronia is a (fictitious) Province (RW_NATIONSTATE (“Real World” Nation State)) in Canada and the legal government jurisdiction for the citizens of the province. The Province of Sovronia is an Organization. The Province of Sovronia issues “Real World” Sovronia Driver’s Licenses (SDLs) but relies on SOVRONA to issue digital, verifiable SDLs.
22. Erin RW Wallet. Erin RW Wallet is a RW_WALLET (“Real World” (Leather) Wallet) and it is used to hold Erin’s “Real World” Sovronia Driver’s License (Erin RW SDL). Erin RW Wallet is owned and controlled by Erin.
23. Erin RW SDL. Erin RW SDL is Erin’s RW_SDL (“Real World” Sovronia Driver’s License) and it is held by Erin in Erin’s RW Wallet.
10.2 SOVRONA TDIDP Narrative (F10)
12. http://services.sovrona.com/agent. http://services.sovrona.com/agent is the primary SEP (Service Endpoint) for accessing the AGENT(s) associated with the DID(s) and DID Document(s) issued by SOVRONA, an Organization.
24. SOVRONA Organization. SOVRONA is an Organization and the primary “Real World” TDIDP (RW_DIDPROVIDER) for the citizens and government of Sovronia, a fictitious province in Canada. SOVRONA controls a Digital Wallet (PDR (Personal Data Registry)), SOVRONA D Wallet, as well as the SOVRONA Verifiable Data Registry (VDR).
25. SOVRONA D Wallet. SOVRONA D Wallet is a Digital Wallet (PDR (Private Data Registry)) that is controlled by SOVRONA, an Organization.
26. SOVRONA DD. SOVRONA DD is the primary DIDDOC (DID Document) for SOVRONA, an Organization.
27. DID:SVRN:ORG:01E9CFEA-E36D-4111-AB68-D99AE9D86D51#fdom1. DID:SVRN:ORG:01E9CFEA-E36D-4111-AB68-D99AE9D86D51#fdom1 is the identifier for the primary AGENT for SOVRONA, an Organization.
28. SOVRONA DD MVCA. SOVRONA DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for SOVRONA’s DID Document (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of itself for SOVRONA’s DD. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is SOVRONA, the Organization.)
11. VE-ARM “All-In” Graph View
The following is a depiction of the “All-In” view of the The Verifiable Economy Architecture Reference Model (VE-ARM) graph. This graph view represents the union of all of the previous subgraphs.
11.1 Narrative
1. Erin. Erin is a RW_PERSON (“Real World” Person) and a citizen of the Province of Sovronia. Erin also holds a (valid) Sovronia Driver’s License (SDL) and controls a “Real World” Wallet (RW_WALLET) as well as a Digital Wallet (PDR).
2. Erin D Wallet. Erin D Wallet is a Digital Wallet (PDR (Private Data Registry)) controlled by Erin, a Person.
3. Erin DD. Erin DD is the primary DIDDOC (DID Document) for Erin, a Person. It is issued by SOVRONA who records it on the SOVRONA VDR and it is also held in the Erin DD Wallet.
4. DID:SVRN:PERSON:04900EEF-38E7-487E-8D6F-09D6C95D9D3E#fdom1. DID:SVRN:PERSON:04900EEF-38E7-487E-8D6F-09D6C95D9D3E#fdom1 is the identifier for the primary AGENT for Erin, a Person.
5. http://services.sovronia.ca/agent. http://services.sovronia.ca/agent is the primary SEP (Service Endpoint) for accessing the AGENT(s) associated with the DID(s) and DID Document(s) issued by the Province of Sovronia, an Organization. This includes all of the DID(s) and DID Document(s) associated with Erin.
6. SOVRONA VDR. SOVRONA VDR is the primary VDR (Verifiable Data Registry) controlled by SOVRONA, an Organization. The SOVRONA VDR is used to host the SVRN DID Method.
7. Erin DD MVCA. Erin DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s DID Document at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to Erin.)
8. PoS RW Nation State. The Province of Sovronia is a (fictitious) Province (RW_NATIONSTATE (“Real World” Nation State)) in Canada and the legal government jurisdiction for the citizens of the province. The Province of Sovronia is an Organization. The Province of Sovronia issues “Real World” Sovronia Driver’s Licenses (SDLs) but relies on SOVRONA to issue digital, verifiable SDLs.
9. PoS D Wallet. PoS D Wallet is a Digital Wallet (PDR (Private Data Registry)) controlled by the Province of Sovronia, an Organization.
10. PoS DD. PoS DD is the primary DIDDOC (DID Document) for the Province of Sovronia, an Organization. It is issued by SOVRONA who records it on the SOVRONA VDR and it is held in the PoS D Wallet.
11. DID:SVRN:ORG:0E51593F-99F7-4722-9139-3E564B7B8D2B#fdom1. DID:SVRN:ORG:0E51593F-99F7-4722-9139-3E564B7B8D2B#fdom1 is the identifier for the primary AGENT for the Province of Sovronia, an Organization.
12. http://services.sovrona.com/agent. http://services.sovrona.com/agent is the primary SEP (Service Endpoint) for accessing the AGENT(s) associated with the DID(s) and DID Document(s) issued by SOVRONA, an Organization.
13. PoS DD MVCA. PoS DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for the Province of Sovronia’s DID Document (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of itself for the Province of Sovronia. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods to the Province of Sovronia.)
14. Erin SDL DD. Erin SDL DD is the primary DIDDOC (DID Document) for Erin’s digital, verifiable SDL.
15. Erin SDL MVCA. Erin SDL MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
16. Erin SDL Prop Set DD. Erin SDL Prop Set DD is the primary DIDDOC (DID Document) for the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.
17. Erin SDL Prop Set MVCA. Erin SDL Prop Set MVCA is the Master Verifiable Capability Authorization (MVCA) created for Erin’s SDL Prop Set (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of the Province of Sovronia for Erin’s SDL. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is the Province of Sovronia.)
18. Erin SDL VCA. Erin SDL VCA is the Verifiable Capability Authorization (VCA) created for Erin’s SDL Prop Set DD. The VCA was issued by the Province of Sovronia authorizing Erin to be able to present the properties (and their values) of Erin’s SDL to a third party using the Present method associated with Erin’s SDL Prop Set and supported (implemented) by Erin’s AGENT. The parent of Erin’s SDL VCA is the Erin SDL MVCA.
19. Erin SDL VCA MI. Erin SDL VCA MI is an example of a MVCA Method Invocation (VCA MI) that uses the Erin SCL VCA which authorizes the potential execution of the Present method by Erin against Erin’s SDL Prop Set.
20. Erin SDL Prop Set VC. Erin SDL Prop Set VC is the Verified Credential (VC) that is used to represent the properties of Erin’s digital, verifiable SDL (and their values). The properties (and their values) are represented in Erin SDL Prop Set VC, a Verifiable Credential associated with the DID in Erin SDL Prop Set DD.
21. DID:SVRN:VC:0B114A04-2559-4C68-AE43-B7004646BD76#fdom1. DID:SVRN:VC:0B114A04-2559-4C68-AE43-B7004646BD76#fdom1 is the identifier for the primary AGENT for Erin SDL Property Set DD.
22. Erin RW Wallet. Erin RW Wallet is a RW_WALLET (“Real World” (Leather) Wallet) and it is used to hold Erin’s “Real World” Sovronia Driver’s License (Erin RW SDL). Erin RW Wallet is owned and controlled by Erin.
23. Erin RW SDL. Erin RW SDL is Erin’s RW_SDL (“Real World” Sovronia Driver’s License) and it is held by Erin in Erin’s RW Wallet.
24. SOVRONA Organization. SOVRONA is an Organization and the primary “Real World” TDIDP (RW_DIDPROVIDER) for the citizens and government of Sovronia, a fictitious province in Canada. SOVRONA controls a Digital Wallet (PDR (Personal Data Registry)), SOVRONA D Wallet, as well as the SOVRONA Verifiable Data Registry (VDR).
25. SOVRONA D Wallet. SOVRONA D Wallet is a Digital Wallet (PDR (Private Data Registry)) that is controlled by SOVRONA, an Organization.
26. SOVRONA DD. SOVRONA DD is the primary DIDDOC (DID Document) for SOVRONA, an Organization.
27. DID:SVRN:ORG:01E9CFEA-E36D-4111-AB68-D99AE9D86D51#fdom1. DID:SVRN:ORG:01E9CFEA-E36D-4111-AB68-D99AE9D86D51#fdom1 is the identifier for the primary AGENT for SOVRONA, an Organization.
28. SOVRONA DD MVCA. SOVRONA DD MVCA is the Master Verifiable Capability Authorization (MVCA) created for SOVRONA’s DID Document (DD) at the time that the DID and DID Document were first issued by SOVRONA on behalf of itself for SOVRONA’s DD. (A new MVCA is created whenever a new DID and DID Document are issued by a TDIDP. The MVCA grants authorization for any and all methods defined for the subject to the effective issuer. In this case, the effective issuer is SOVRONA, the Organization.)
29. DID:SVRN:LICENSE:999902-638#fdom1. DID:SVRN:LICENSE:999902-638#fdom1 is the identifier for the primary AGENT for Erin SDL DD.
12. Conclusions
The goals of this article are three-fold:
- Introduce the concept of a Verifiable Capability Authorizations (VCA) and how they can be used to implement controls over which specific methods a particular party is allowed to execute against a particular instance of a Fully Decentralized Object (FDO). VCAs are both delegatable and attenuatable.
- Illustrate how #graphitization techniques can be used for visualizing:
- Trusted Decentralized Identifiers (DIDs)
- DID Documents
- Trusted Digital Agents (and their Service Endpoints (SEPs))
- Verifiable Credentials (VCs)
- Verifiable Capability Authorizations (VCAs) and,
- Most importantly, their myriad of interrelationships.
- Use the above 2 goals to further detail and describe how to use the VE-ARM model for implementing trusted, reliable, efficient, frictionless, standards-based, global-scale software systems based on Fully Decentralized Objects (FDOs).
This article described The Verifiable Economy Architecture Reference Model (VE-ARM) using a #graphiziation approach for modeling and visualization. The resulting overall graph was partitioned into a series of subgraphs that depict the key elements of the architecture reference model. Each subgraph was documented with a narrative that is mapped to the numbered blue targets used to identify each element in each subgraph .
Hyperonomy Digital Identity Lab™ - hyperonomy.com
